Hydraulic blocks are fundamental components in hydraulic systems, acting as distribution and control centers for the flow of fluids that allow the efficient operation of various industrial machines and equipment. Proper cleaning of these blocks is essential to ensure their optimal performance and prolong their useful life. In this context, ultrasonic cleaning is presented as a highly effective solution.
From daily use, the first condition to keep the hydraulic system working properly is that the inside of the system must be clean. Contamination of the hydraulic system is inevitable before the operation of new equipment or after an equipment overhaul, although hydraulic component manufacturers are careful with the internal cleaning of the components themselves.
Hydraulic blocks can face various problems that affect their operation and efficiency. Below are some of the most common ones:
1. Internal Contamination
The presence of solid particles, oil residues, sludge and other contaminants in the hydraulic system can clog the internal passages of the block, affecting the proper flow of fluid and causing premature wear of the components.
2. Fluid Leaks
Leaks can originate due to design, manufacturing defects or improper maintenance. These leaks not only reduce the efficiency of the system, but can also cause environmental and safety problems.
3. Corrosion
Exposure to humid environments or the presence of corrosive contaminants in the hydraulic fluid can cause rust and deterioration of the internal surfaces of the block, compromising its structural integrity.
4. Valve and Seal Failures
Wear or damage to the valves and seals within the hydraulic block can lead to loss of pressure, erratic system operation and decreased operating efficiency.
5. Cavitation
Formation of vapor bubbles in the hydraulic fluid, followed by their collapse, can cause damage to the internal surfaces of the block, generating noise, vibrations and potential mechanical failures.
DISCOVER OUR CLEANING MACHINES FOR HYDRAULIC BLOCKS
Ultrasonic cleaning is an advanced technique that uses high-frequency sound waves to remove contaminants from the surfaces of components immersed in a cleaning fluid. This method offers multiple advantages in cleaning hydraulic blocks:
1. Deep and Complete Cleaning
Ultrasonic waves generate microbubbles that implode upon contact with surfaces, effectively removing contaminants even in hard-to-reach areas such as internal ducts and complex cavities.
2. Non-Abrasive
Unlike other mechanical cleaning methods, ultrasonic cleaning does not wear down or damage hydraulic block surfaces, preserving their integrity and functionality.
3. Time and Resource Efficiency
This method allows for the simultaneous cleaning of multiple components, significantly reducing downtime and optimizing operational resources.
4. Removal of Microscopic Residues
It is highly effective in removing minute contaminants such as grease, oil, dust particles and oxides that are difficult to remove with traditional methods.
5. Energy Efficiency
Ultrasonic cleaning is an efficient process that can save time and money compared to other cleaning methods.
6. Safety and Sustainability
By minimizing or eliminating the use of harsh chemicals, ultrasonic cleaning is safer for operators and reduces environmental impact, aligning with sustainable practices.
Ultrasonic cleaning is applied in various contexts related to hydraulic blocks:
1. Preventive Maintenance
Regular cleaning of hydraulic blocks using ultrasound helps prevent the build-up of contaminants, reducing the risk of failure and prolonging the life of the system.
2. Repair and Reconditioning
During repair work, cleaning allows for the complete removal of residue and deposits, facilitating inspection and ensuring effective reconditioning.
3. Manufacturing and Assembly
In the production of hydraulic blocks, cleaning ensures that components are free of contaminants before assembly, ensuring the quality and reliability of the final product.
4. Application Industries
Ultrasonic cleaning of hydraulic blocks is especially relevant in sectors such as:
CAN WE HELP YOU WITH CLEANING HYDRAULIC BLOCKS?
The ultrasonic wave, when applied with the appropriate power, is introduced into the cleaning solution generating a point microcavity. As this cavity expands to a certain limit, it abruptly collapses, creating a partial vacuum. The surrounding fluid moves at high speed to fill this vacuum, generating intense sound pressure and mechanical impact (cavitation) of thousands of times atmospheric pressure. This action effectively removes contaminants adhering to the surface of parts immersed in the cleaning liquid.
This method offers reduced cleaning time, superior cleaning quality and the ability to treat parts with complex geometries that would be difficult to clean manually. Compared to traditional cleaning, the efficiency of the process is multiplied by more than ten, optimizing time and reducing costs. DCM Ultrasonic, specialists in ultrasonic equipment for cleaning hydraulic blocks.
News
Cleaning of hydraulic blocks
04 March de 2025
DCM Ultrasonic, ultrasonic cleaning is the perfect solution to remove swarf, rust, oils and any dirt. In addition, it is applicable to all types of materials such as stainless steel, carbon steel, brass, bronze, aluminum, zamak and technical plastics. Machining and bar turning. The differential value of our equipment is the relationship between performance and low energy consumption. Thanks to the exclusive patented and implemented technology of DCM Ultrasonic, our clients obtain great savings in water consumption, detergents, waste recycling, electrical energy and a reduction in labor of around 80% more compared to the competition.Cleaning of hydraulic blocks with ultrasonic machines

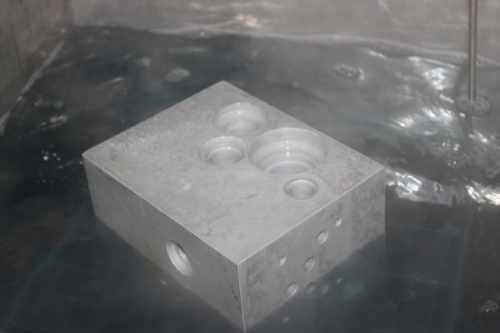

Hydraulic blocks are fundamental components in hydraulic systems, acting as distribution and control centers for the flow of fluids that allow the efficient operation of various industrial machines and equipment. Proper cleaning of these blocks is essential to ensure their optimal performance and prolong their useful life. In this context, ultrasonic cleaning is presented as a highly effective solution.
From daily use, the first condition to keep the hydraulic system working properly is that the inside of the system must be clean. Contamination of the hydraulic system is inevitable before the operation of new equipment or after an equipment overhaul, although hydraulic component manufacturers are careful with the internal cleaning of the components themselves.
Common Problems in Hydraulic Blocks
Hydraulic blocks can face various problems that affect their operation and efficiency. Below are some of the most common ones:
1. Internal Contamination
The presence of solid particles, oil residues, sludge and other contaminants in the hydraulic system can clog the internal passages of the block, affecting the proper flow of fluid and causing premature wear of the components.
2. Fluid Leaks
Leaks can originate due to design, manufacturing defects or improper maintenance. These leaks not only reduce the efficiency of the system, but can also cause environmental and safety problems.
3. Corrosion
Exposure to humid environments or the presence of corrosive contaminants in the hydraulic fluid can cause rust and deterioration of the internal surfaces of the block, compromising its structural integrity.
4. Valve and Seal Failures
Wear or damage to the valves and seals within the hydraulic block can lead to loss of pressure, erratic system operation and decreased operating efficiency.
5. Cavitation
Formation of vapor bubbles in the hydraulic fluid, followed by their collapse, can cause damage to the internal surfaces of the block, generating noise, vibrations and potential mechanical failures.
DISCOVER OUR CLEANING MACHINES FOR HYDRAULIC BLOCKS
Advantages of Ultrasonic Cleaning for Hydraulic Blocks
Ultrasonic cleaning is an advanced technique that uses high-frequency sound waves to remove contaminants from the surfaces of components immersed in a cleaning fluid. This method offers multiple advantages in cleaning hydraulic blocks:
1. Deep and Complete Cleaning
Ultrasonic waves generate microbubbles that implode upon contact with surfaces, effectively removing contaminants even in hard-to-reach areas such as internal ducts and complex cavities.
2. Non-Abrasive
Unlike other mechanical cleaning methods, ultrasonic cleaning does not wear down or damage hydraulic block surfaces, preserving their integrity and functionality.
3. Time and Resource Efficiency
This method allows for the simultaneous cleaning of multiple components, significantly reducing downtime and optimizing operational resources.
4. Removal of Microscopic Residues
It is highly effective in removing minute contaminants such as grease, oil, dust particles and oxides that are difficult to remove with traditional methods.
5. Energy Efficiency
Ultrasonic cleaning is an efficient process that can save time and money compared to other cleaning methods.
6. Safety and Sustainability
By minimizing or eliminating the use of harsh chemicals, ultrasonic cleaning is safer for operators and reduces environmental impact, aligning with sustainable practices.
Ultrasonic Cleaning Applications in Hydraulic Blocks
Ultrasonic cleaning is applied in various contexts related to hydraulic blocks:
1. Preventive Maintenance
Regular cleaning of hydraulic blocks using ultrasound helps prevent the build-up of contaminants, reducing the risk of failure and prolonging the life of the system.
2. Repair and Reconditioning
During repair work, cleaning allows for the complete removal of residue and deposits, facilitating inspection and ensuring effective reconditioning.
3. Manufacturing and Assembly
In the production of hydraulic blocks, cleaning ensures that components are free of contaminants before assembly, ensuring the quality and reliability of the final product.
4. Application Industries
Ultrasonic cleaning of hydraulic blocks is especially relevant in sectors such as:
- Automotive: To ensure the optimal functioning of brake systems, transmissions and suspensions.
- Aeronautics: Where the precision and reliability of hydraulic systems are crucial for safety.
- Industrial Manufacturing: In heavy machinery and production equipment that rely on efficient hydraulic systems.
- Medical Sector: In equipment that uses hydraulic systems, where cleanliness is vital to avoid contamination.
CAN WE HELP YOU WITH CLEANING HYDRAULIC BLOCKS?
The ultrasonic wave, when applied with the appropriate power, is introduced into the cleaning solution generating a point microcavity. As this cavity expands to a certain limit, it abruptly collapses, creating a partial vacuum. The surrounding fluid moves at high speed to fill this vacuum, generating intense sound pressure and mechanical impact (cavitation) of thousands of times atmospheric pressure. This action effectively removes contaminants adhering to the surface of parts immersed in the cleaning liquid.
This method offers reduced cleaning time, superior cleaning quality and the ability to treat parts with complex geometries that would be difficult to clean manually. Compared to traditional cleaning, the efficiency of the process is multiplied by more than ten, optimizing time and reducing costs. DCM Ultrasonic, specialists in ultrasonic equipment for cleaning hydraulic blocks.
